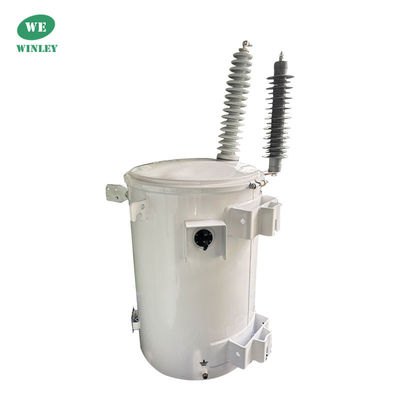

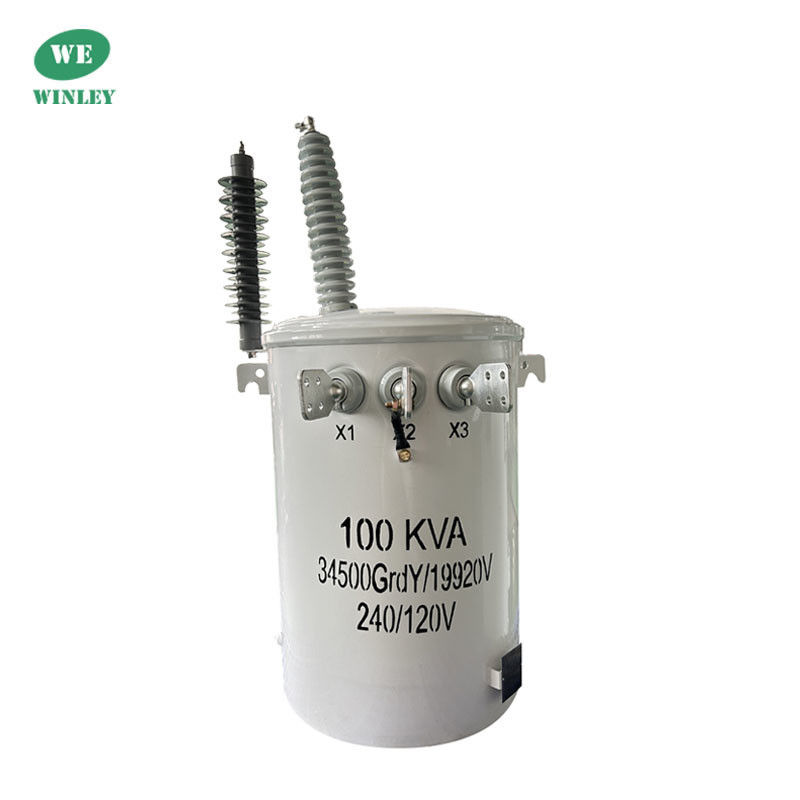

Pole Mounted Transformer Overhead Distribution Oil immersed Single Phase 100KVA 34500V Manufacturer
The D-100-34.5/0.12-0.24Y is 100 kVA single-phase pole-mounted transformer designed to meet the Std IEEE C57.12.20 and energy efficiency standards of Std ANSI C57.12.
Main data
| Phase | Single Phase |
| Capacity | 100 KVA |
| Primary Voltage | 19920/34500GrdY |
| Primary BIL | 200 kV |
| Secondary Voltage | 120/240V (L-L-N) |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Cooling Class | ONAN |
| No Load Loss | 250W |
| Full Load Loss | 1205W |
| Efficiency @ 100% Load | 99.05% |
| Impedance (approx) | 2.75% |
| Winding Material | Copper |
| Dimensions | 31 x 35 x 54 |
| Weight | 1,180 lb |
| Ratings | ANSI / IEEE Standard C57.12.20 |
Product drawings
Feature
Specifications
| 10kva-500kva Single-phase oil immersed transformer | ||||||
| Rated Cap acity(kVA) | High | Low Voltage(v) | Connection Symbol | Standard | Short-circuit impedance(%) | Efficiency |
| Voltage(v) | (%) | |||||
| 10 | 4160 7200 12000 12470 13200 13800 19920 24940 34500 |
110 220 230 400 480 |
II0,II6 | IEEE/ANSI/ DOE/CSA | 1.0-4.5% | 98.7 |
| 15 | 98.82 | |||||
| 25 | 98.95 | |||||
| 37.5 | 99.05 | |||||
| 50 | 99.11 | |||||
| 75 | 99.19 | |||||
| 100 | 99.25 | |||||
| 167 | 99.33 | |||||
| 250 | 99.39 | |||||
| 333 | 99.43 | |||||
| 500 | 99.49 | |||||
Why choose us
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
|
