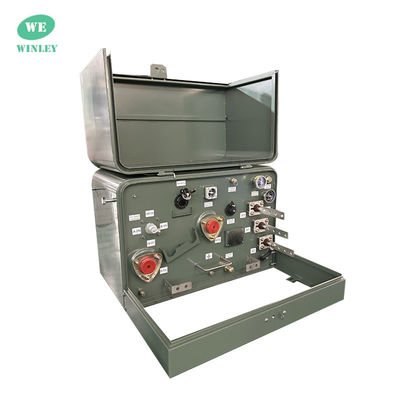

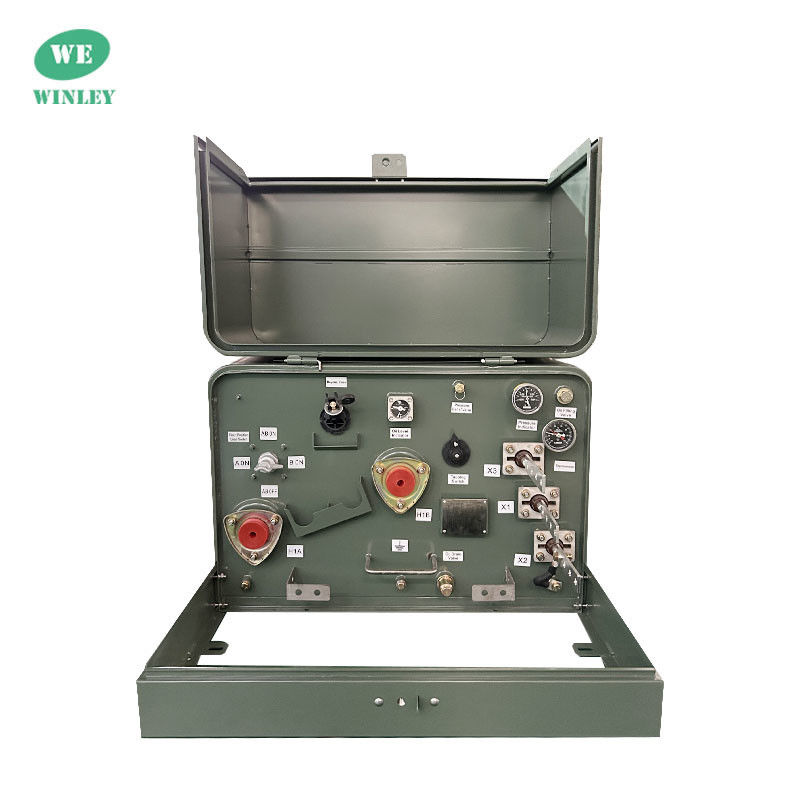

Single Phase Pad Mounted Distribution oil-immersed Transformer 50Kva 12.47KV To 240V 120V 304 Stainless Steel
WINLEY's single phase pad mounted transformer are designed, built, and tested in accordance with the highest industry standards, They feature a clamshell cabinet design allowing easy access in a compact footprint.
Standard Feature
Optional specs
Main data
| Phase | Single Phase |
| kVA | 100 |
| Primary Voltage | 13800GrdY/7968 |
| Secondary Voltage | 240/120V (L-N-L) |
| Frequency | 60 Hz |
| Temperature Rise | 60°C |
| Efficiency | Meet DOE 2016 Standard |
| Insulation Fluid | Mineral Oil |
| Cooling Class | ONAN |
| Feed | Loop |
| Winding Material | Copper |
| Dimensions | 30 x 34 x 36 |
| Weight | +/- 1130 lb |
Drawing
Specification
| Single phase Pad mounted Transformer Specification | ||||||||
| Rating | High voltage(kV) | No Load Loss | On load Loss | Height | Depth | Width | Oil Weight(kg) | Total Weight(kg) |
| (kVA) | (mm) | (mm) | (mm) | |||||
| 15 kVA | 34.5/19.92 13.8/8 13.2/7.6 12.47/7.2 or others |
50 | 195 | 840 | 740 | 610 | 45 | 294 |
| 25 kVA | 80 | 290 | 840 | 740 | 610 | 68 | 362 | |
| 37.5 kVA | 106 | 360 | 840 | 760 | 610 | 75 | 476 | |
| 50 kVA | 135 | 500 | 840 | 810 | 610 | 93 | 553 | |
| 75 kVA | 190 | 650 | 840 | 860 | 610 | 132 | 672 | |
| 100 kVA | 280 | 1010 | 910 | 1200 | 965 | 230 | 714 | |
| 167 kVA | 435 | 1530 | 1000 | 1200 | 965 | 265 | 913 | |
| 250 kVA | 550 | 2230 | 1250 | 1300 | 1430 | 325 | 1106 |
|
Why choose us
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
|
