| Brand Name: | WINLEY |
| Model Number: | D-167/34.5 |
| MOQ: | 1unit |
| Price: | $1000-$10000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |

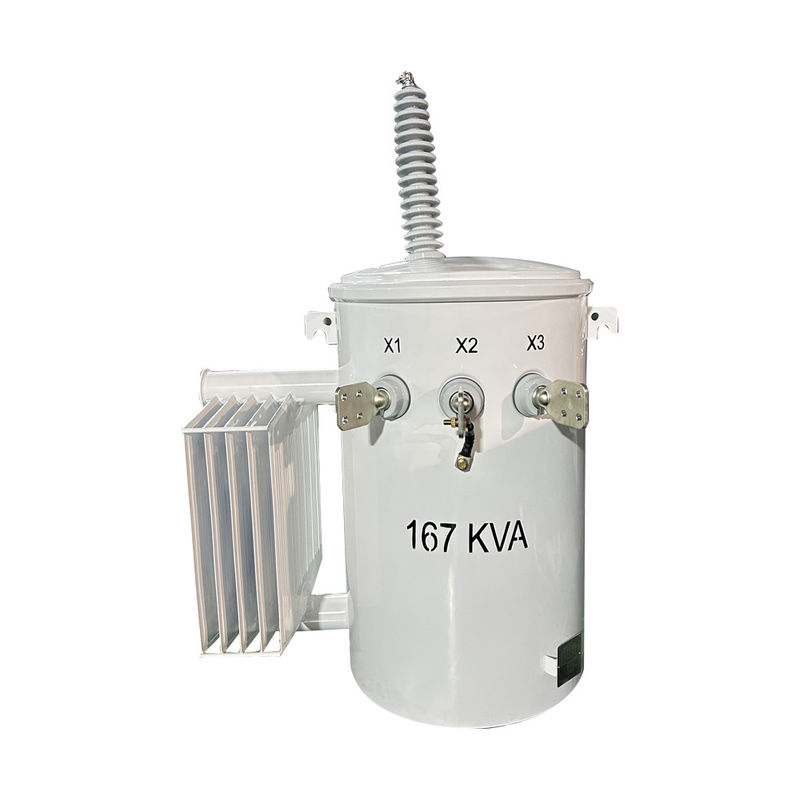

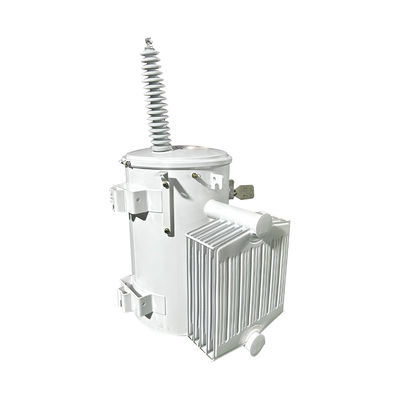

Single Phase Pole Mounted Distribution Transformer Dual Winding 167Kva 34.5KV To 120V
Primary Voltage Ratings: 34.5-19.92/13.8-7.957/13.2-7.62/12.47-7.2 or others
Secondary Voltage Ratings: 120-240/240-480/347/600V or others
H.V. TAP RANGE: ±2×2.5% or others
CONNECTION TYPE: Ii0,Ii6
TYPE: Conventional type/CSP type
BIL: 30-150kV
Standards: IEEE, CSA, DOE, IEC
Application: Utility, Electrical wholesales, Industry
Power Rating: 10-333 kVA
Structural Features
The transformer features a cylindrical sealing structure,Each unit is equipped with:
Main data
| Transformer Type | Overhead Distribution Transformer, Conventional Type |
| Phase | Single Phase |
| Capacity | 167 KVA |
| Primary Voltage | 34500GrdY/19920 |
| Secondary Voltage | 120/240V (L-N-L) |
| Secondary Phasor | Dual Winding Single Phase |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Insulation Rating | Class E Insulation - 120°C, 248°F |

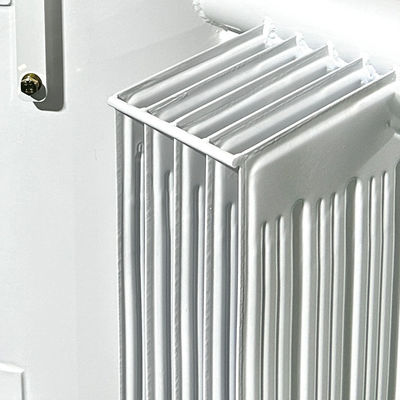

| Cooling Class | ONAN |

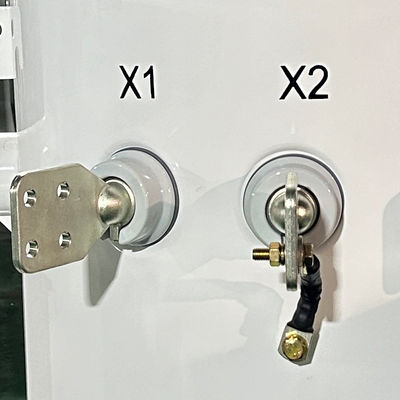

| Primary Connection Type | Live Bushing Lug |
| Efficiency Standard(s) | DOE 2016 , CSA ,ANSI/IEEE Standards |
| Winding Material | Copper |
| Ambient Temperature Rating | 40°C |
| Sound Level | 55 dBA |
| Dimensions* | 43.25''-W x 35.00''-D x 51.05''-H |
| Tank Diameter* | 23.5'' OD |
| Total Weight (Liquid Filled)* | 1538 lb |
| Efficiency | 98.50% |
Drawing
Specifications
| 10kva-500kva Single-phase oil immersed transformer | ||||||
| Rated Cap acity(kVA) | High | Low Voltage(v) | Connection Symbol | Standard | Short-circuit impedance(%) | Efficiency |
| Voltage(v) | (%) | |||||
| 10 | 4160 7200 12000 12470 13200 13800 19920 24940 34500 |
110 220 230 400 480 |
II0,II6 | IEEE/ANSI/ DOE/CSA | 1.0-4.5% | 98.7 |
| 15 | 98.82 | |||||
| 25 | 98.95 | |||||
| 37.5 | 99.05 | |||||
| 50 | 99.11 | |||||
| 75 | 99.19 | |||||
| 100 | 99.25 | |||||
| 167 | 99.33 | |||||
| 250 | 99.39 | |||||
| 333 | 99.43 | |||||
| 500 | 99.49 | |||||
Factory Tests
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
|
