| Brand Name: | WINLEY |
| Model Number: | D-25/12.47 |
| MOQ: | 1unit |
| Price: | $1000-$10000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |
25KVA Single Phase Pole Distribution Transformer 12470V To 277V ANSI IEEE
Product Overview
The single phase pole mounted transformer is a fully sealed cylindrical structure and is installed by pole-mounted suspension. It has the advantages of small size, strong overload capacity, high continuous operation reliability, and simple maintenance.
The pole-mounted transformers produced by WINLEY ELECTRIC have rated capacities ranging from 10 kVA to 333 kVA, meeting ANSI/IEEE C57, IEC60076 and other standards, and meeting or even exceeding DOE and CSA efficiency requirements. Our products have been exported in large quantities to markets such as North America, Central and South America, and Southeast Asia, and have been widely praised.
Main data
| Transformer Type | Overhead Distribution Transformer, Conventional Type |
| Phase | Single Phase |
| Capacity | 25 KVA |
| Primary Voltage | 12470GrdY/7200 |
| Secondary Voltage | 277V |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Insulation Rating | Class E Insulation - 120°C, 248°F |
| Cooling Class | KNAN |
| Impedance | 2.75% Typical |
| Primary Connection Type | Live Bushing Lug |
| Secondary Connection Type | Live Bushing Lug |
| Efficiency Standard(s) | Meets DOE 2016 Standards, Meets ANSI/IEEE Standards |
| K-Factor Rating (Harmonic Mitigation) | K-1 (Standard) |
| Winding Material | Copper |
| Ambient Temperature Rating | 40°C |
| Sound Level | 48 dBA |
| Dimensions* | 21.55''-W x 24.5''-D x 40.05''-H |
| Efficiency | 98.90% |

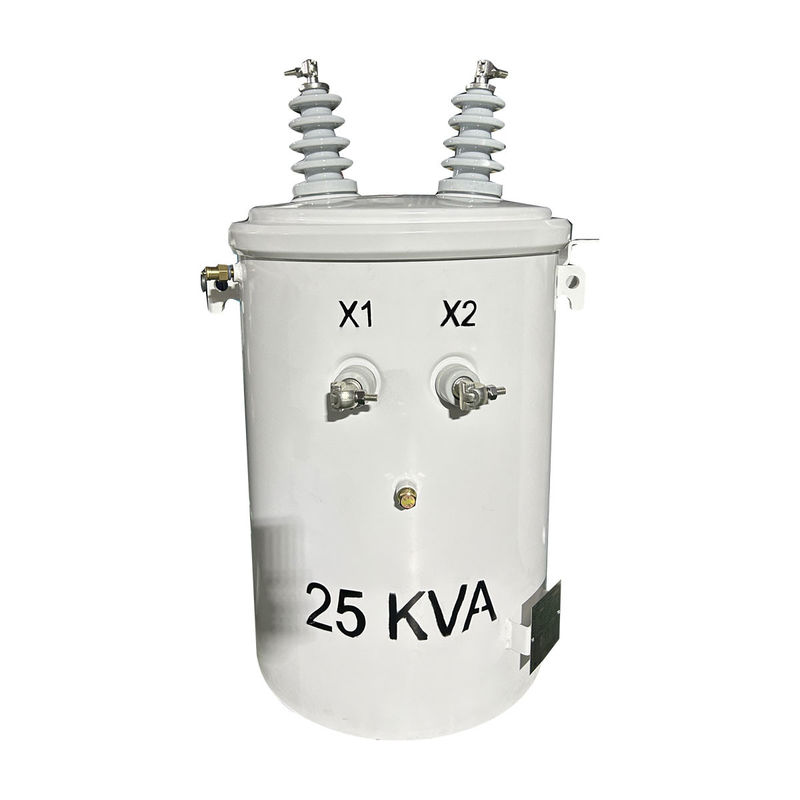

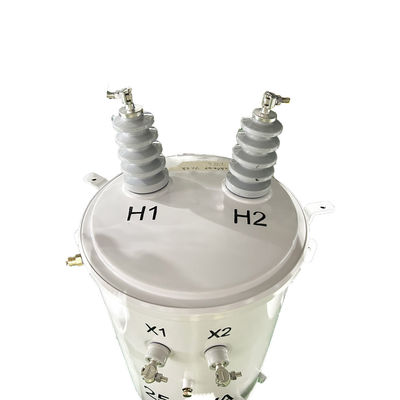

Product images
Standard Feature
■Quality System ISO 9001 certified.
■Lifting lugs meeting all of the requirements of the CSA C2.1-06 and CSA C2.2-06 Standard
■Computer aided design for mechanical & electrical calculations (C.A.D.).
■Core and coils designed for an optimum Total Ownership Cost (TOC).
■Provision for surge arrester bracket,bracket available as an option.
■"Low-high-low"windings for increased short circuit stren-gth,efficiency and thermal strength
■Cover or sidewall mounted high voltage bushing(s)as required.
■Wound core with step-lap joints for increased efficiency and lower noise levels.
■Dual voltage designed to meet BIL and short circuit requirements on both connections.
■Automatic self-resealing pressure relief valve.
■Low voltage spade or clamp type(basket)terminals as required.
■Multiple cover clamps to ensure proper sealing and to minimize water retention on the cover edge
Product drawings
Specification
| Single phase Pole Mounted transformer | ||||||
| Rated Capacity | High Voltage |
Low Voltage |
Connection Symbol | Standard | Short-circuit impedance | Efficiency |
| (kVA) | (v) | (v) | (%) | (%) | ||
| 10 | 34500/19920V 13800/7957V 13200/7620V 12470/7200V or others |
120-240V 240-480V 347V 600V |
II0,II6 | IEEE/ANSI/ DOE | 1.8-4% | 98.7 |
| 15 | 98.82 | |||||
| 25 | 98.95 | |||||
| 37.5 | 99.05 | |||||
| 50 | 99.11 | |||||
| 75 | 99.19 | |||||
| 100 | 99.25 | |||||
| 167 | 99.33 | |||||
| 250 | 99.39 | |||||
| 333 | 99.43 | |||||
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
|
