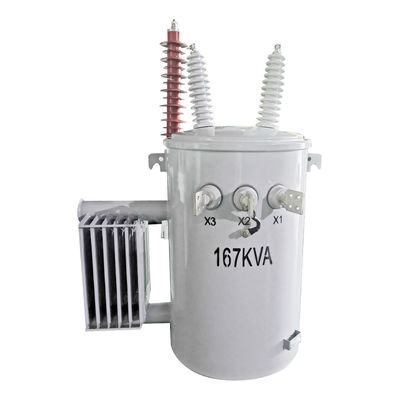

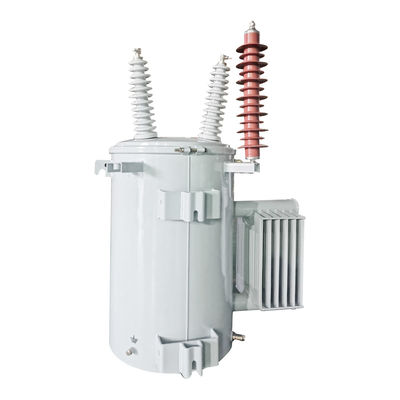

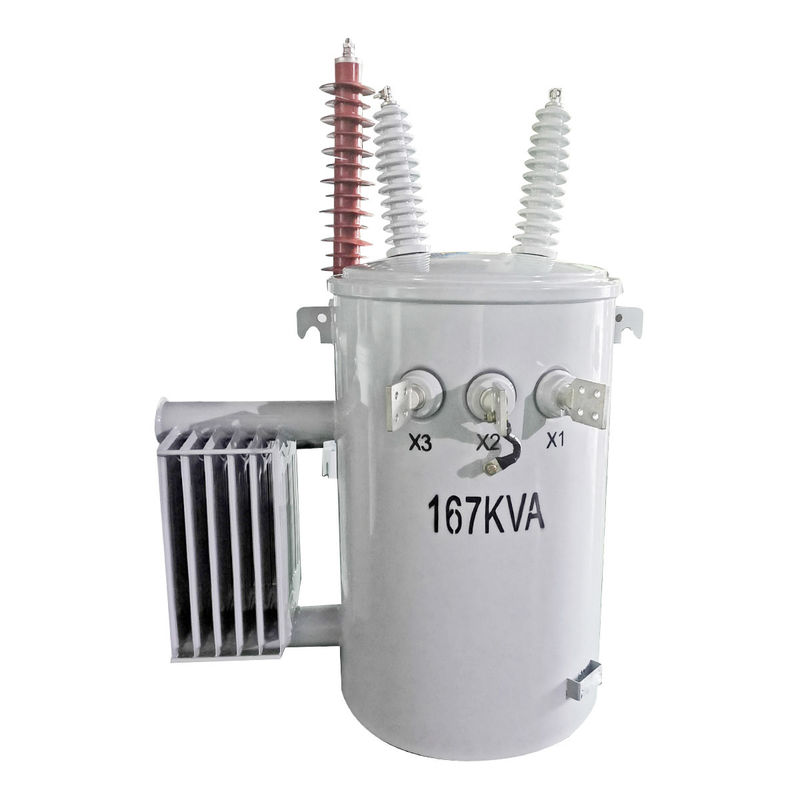

167Kva Single Phase Pole Mounted Transformer Oil immersed 34500GrdY/19920
Single Phase Oil-immersed Transformer
Rated Capacity:10kva-500kva
Type:Conventionaltype/CSPtype
HighVoltage:2400V through 34500 GrdY/19920V
Structural Features
1. The tank lids have high-voltage porcelain bushings that come with ring terminals, which can accommodate either aluminum or copper cables.
2. The circular sewing structure of the tank cover ensures even stress distribution and reliable sealing.
3. The ring bolts on the tank wall serve as the low-voltage bushing and terminal and are tin-plated.
4. This item comes with a pressure relief valve that is capable of self-sealing.
5. According to ANSI standards, the transformer's suspension hooks at the top and bottom comply.
6. The ground terminal on the tank is a ring bolt ground terminal.
Main data
| SINGLE PHASE POLE MOUNTED TRANSFORMER | |||
| No. | ITEM | UNIT | SPECIFICATION |
| 1 | Type | ~ | POLE MOUNTED |
| 2 | Rated capacity | kVA | 167 |
| 3 | No. of Phase | ~ | single |
| 4 | Primary voltage | V | 34500GrdY/19920 |
| 5 | Primary bushing | ~ | (2) Porcelain bushing |
| 6 | Secondary voltage | V | 139/277 |
| 7 | Secondary terminal | ~ | (3) 4-hole spadel |
| 10 | Polarity type | ~ | Subtractive |
| 11 | Vector group | ~ | Ii0 |
| 12 | Tapping type | ~ | off-circuit tapping |
| 13 | Tapping range | % | ±2*2.5 |
| 14 | Cooling method | ~ | ONAN |
| 15 | Rated frequency | Hz | 60 |
| 16 | Insulation class | ~ | A |
| 17 | Temperature rise | K | 65 |
| 18 | Off-load loss | W | 455 |
| 19 | On-load loss (85℃) | W | 1833 |
| 20 | Impedance | % | 1.0~4.5% |
| 21 | Winding material | ~ | copper |
| 22 | Core material | ~ | silicon steel |
| 23 | Insulation Fluids | ~ | mineral oil |
| 24 | Tank material | ~ | coated steel (ANSI 70 gray paint) |
| 25 | Dimension | mm | 1050*900*1400 |
| 26 | Weight | kg | 700 |
| 27 | Service condition | ~ | outdoor |
| 28 | Sea level | m | ≤1000 |
| 29 | Standard | ~ | ANSI C57.12.20 |
Specifications
| 10kva-500kva Single-phase oil immersed transformer | ||||||
| Rated Cap acity(kVA) | High | Low Voltage(v) | Connection Symbol | Standard | Short-circuit impedance(%) | Efficiency |
| Voltage(v) | (%) | |||||
| 10 | 4160 7200 12000 12470 13200 13800 19920 24940 34500 |
110 220 230 400 480 |
II0,II6 | IEEE/ANSI/ DOE | 1.8-4% | 98.7 |
| 15 | 98.82 | |||||
| 25 | 98.95 | |||||
| 37.5 | 99.05 | |||||
| 50 | 99.11 | |||||
| 75 | 99.19 | |||||
| 100 | 99.25 | |||||
| 167 | 99.33 | |||||
| 250 | 99.39 | |||||
| 333 | 99.43 | |||||
| 500 | 99.49 | |||||
Accessories
Single Phase Pole Mounted Transformer Testing
Before the single phase pole mounted transformer is delivered, we will arrange a series of tests which help the customers to verify the quality and ensure the safety. Generally we will perform routine tests which include Ratio test, Winding resistance test, No load loss and no load current test, Applied voltage and induction voltage tests, Leakage test and so on. We will forward the test report by specifying all these tests result with the signature of a professional engineer on the test document. Beside the routine tests, there are other optional tests such as Resistance test, Temperature rise test, Sound level test and so on.
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
|
