| Brand Name: | WINLEY |
| Model Number: | SCB10-1000/13.2 |
| MOQ: | 1unit |
| Price: | $5000-$10000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |

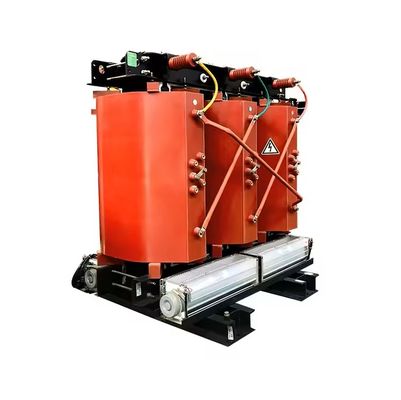

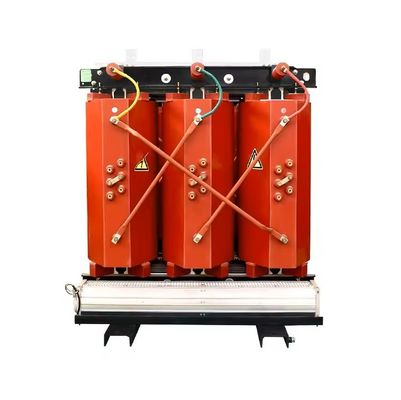

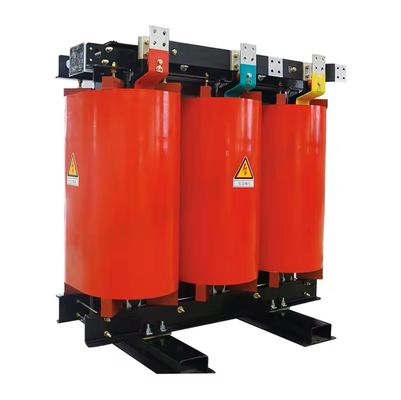

SCB10 Series 1000Kva Three Phase Epoxy Resin Cast Dry Type Isolation Transformer 13200V IEC 60076
WINLEY ELECTRIC's three-phase epoxy resin dry-type transformers are available in three grades: 10KV/20KV/35KV, in compliance with IEC726, GB/T10228-1997 standards, and have the characteristics of low loss, compact structure, low noise, moisture resistance, high mechanical strength, flame retardant, and strong overload capacity.
product structure
Main Data
| 1000kVA transformer specification data | ||||
| No. | Particulars | Unit | Specification | |
| 1 | Type | ~ | cast resin, dry type | |
| 2 | Rated capacity | kVA | 1000 | |
| 3 | No. of Phase | ~ | 3 | |
| 4 | Primary voltage | V | 13200 | |
| 5 | Secondary voltage | V | 480 and 240 | |
| 6 | Tapping type | ~ | off-circuit | |
| 7 | Tapping type | % | ±2*2.5% | |
| 8 | Cooling method | ~ | AN/AF | |
| 9 | Rated frequency | Hz | 60 | |
| 10 | Vector group | ~ | Dy1y1 | |
| 11 | Insulation class | ~ | F | |
| 12 | Temperature rise | K | 100 | |
| 13 | Off-load loss | W | 2270 | |
| 14 | On-load loss (120℃) | W | 10400 | |
| 15 | Impedance | % | 6 | |
| 16 | Winding material | ~ | Cu | |
| 17 | Core material | ~ | silicon steel | |
| 18 | Enclosure | ~ | IP30 | |
| 19 | Service condition | ~ | indoor | |
| 20 | Sea level | M | ≤1000 | |
Drawing
Specification
| Rated capacity | High Voltage | Low | Connection Symbol | No-Load Loss | On-Load Loss | No Load Current | Weight | Short Circuit Impendence |
| (KVA) | (KV) | Voltage | (W) | (W) | (%) | (KG) | (%) | |
| (KV) | ||||||||
| 10 | 6 | 0.4 | Dyn11 | 0.15 | 0.325 | 4.1 | 130 | 4 |
| 30 | 6.3 | Yyn0 | 0.215 | 0.75 | 3.2 | 260 | ||
| 50 | 10 | 0.305 | 1.055 | 2.8 | 315 | |||
| 80 | 10.5 | 0.415 | 1.46 | 2.6 | 470 | |||
| 100 | 11 | 0.45 | 1.665 | 2.4 | 520 | |||
| 125 | 0.53 | 1.955 | 2.2 | 585 | ||||
| 160 | 0.61 | 2.25 | 2.2 | 670 | ||||
| 200 | 0.7 | 2.675 | 2 | 790 | ||||
| 250 | 0.81 | 2.915 | 2 | 920 | ||||
| 315 | 0.99 | 3.67 | 1.8 | 1085 | ||||
| 400 | 1.1 | 4.22 | 1.8 | 1320 | ||||
| 500 | 1.305 | 5.165 | 1.8 | 1520 | ||||
| 630 | 1.46 | 6.31 | 1.6 | 1820 | 6 | |||
| 800 | 1.71 | 7.36 | 1.6 | 2105 | ||||
| 1000 | 1.99 | 8.6 | 1.4 | 2550 | ||||
| 1250 | 2.35 | 10.26 | 1.4 | 2900 | ||||
| 1600 | 2.755 | 12.42 | 1.4 | 3490 | ||||
| 2000 | 3.735 | 15.3 | 1.2 | 4220 | ||||
| 2500 | 4.5 | 19.53 | 1.2 | 4955 |
Performance Characteristic
* Simple maintenance: seldom need any maintenance.
* They are pollution-free
* They are used in the areas of contaminated and damped
* They are easier to Install.
* They have long servie life because of the dielectric heating & low thermal
* Protects the property & people
* For short circuit currents, they have high resistance
* Performance is excellent
Product Photo
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
|
