| Brand Name: | WINLEY |
| Model Number: | S-2500/25 |
| MOQ: | 1unit |
| Price: | $1000-$150000 |
| Packaging Details: | Plywood case |
| Payment Terms: | T/T |

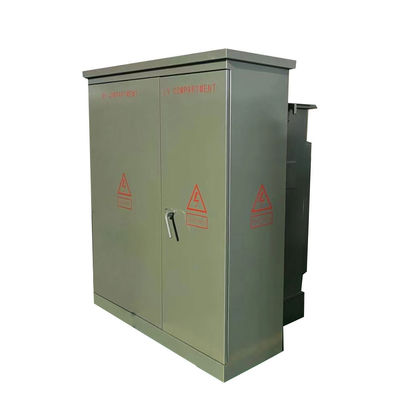

2500 Kva Three Phase Pad Mounted Transformer Step-Down 24940v To 480v
Product Description
| Product Name | ANSI three phase pad mounted transformer |
| Rated Voltage | 7.2KV,7.62KV,10KV,11KV,12.47KV,13.2KV,13.8KV,20KV or 33KV or 35KV |
| Rated Capacity | 50KVA ~ 5000KVA |
| Standard | IEC, ANSI,DIN,BS, GB or other |
| Core and Winding material | Amorphous Metal Core, Copper Winding or Aluminium winding. |
Factory photos
Primary Switching
1)5-position tap changer.
2)4 position load break switch,Can be operated a hot stick and allows for flexibility in repair and maintenance.
termination connection
1)Primary power cables are connected with elbow connectors.
2)Externally clamped bushing wells with loadbreak inserts.
3)Integral loadbreak or non-loadbreak bushings.
4)Secondary termination Externally clamped bushings with NEMA 4-hole, 6-hole.8-hole,10-hole or 12-hole spades , Spade supports are available.
protective device
1) Bayonet fuses partial-range current-limiting fuses.
2) Automatic action pressure relief device.
3) Oil level gauge.
4) Oil temperature gauge.
5) Pressure vacuum gauge.
6) Drain valve with sampler.
7)Distribution class, metal oxide arresters, 3-36 kV.
8)Distribution class, valve-type lightning arresters,3-27 kV.
Specification
| Three Phase Pad Mounted Transformer | ||||
| Rated Power (KVA) | High Voltage (KV) | Low Voltage (V) | Loss (W) | |
| No-load Loss (W) | On-load Loss (W) | |||
| 75KVA | 24.94/14.4kV 12.47/7.2kV 34.5KV/ 19.92KV/ 13.8KV/ 13.2KV/ or others |
120/240V 480Y/ 277V 600Y/ 347V |
180 | 1250 |
| 112.5KVA | 200 | 1500 | ||
| 150KVA | 280 | 2200 | ||
| 225KVA | 400 | 3050 | ||
| 300KVA | 480 | 3650 | ||
| 500KVA | 680 | 5100 | ||
| 750KVA | 980 | 7500 | ||
| 1000KVA | 1150 | 10300 | ||
| 1500KVA | 1640 | 14500 | ||
| 2000KVA | 2160 | 20645 | ||
| 2500KVA | 2680 | 23786 | ||
| 3000KVA | 3300 | 25300 | ||
| 3750KVA | 4125 | 27875 | ||
| 5000KVA | 5200 | 30000 | ||
Technical drawings
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Mass production time 15-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo.
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
|
